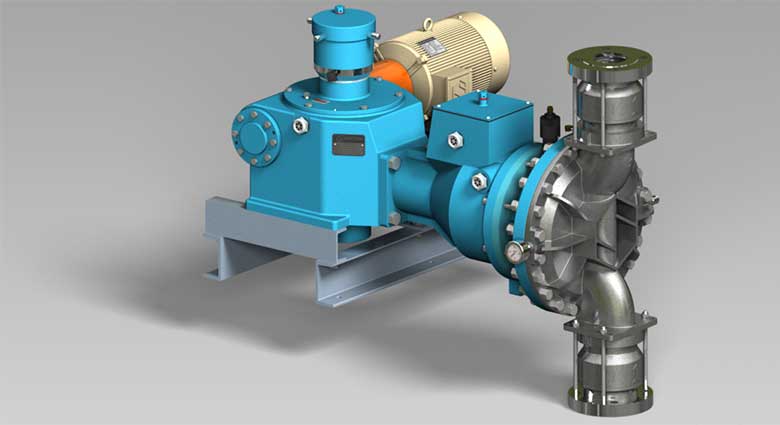

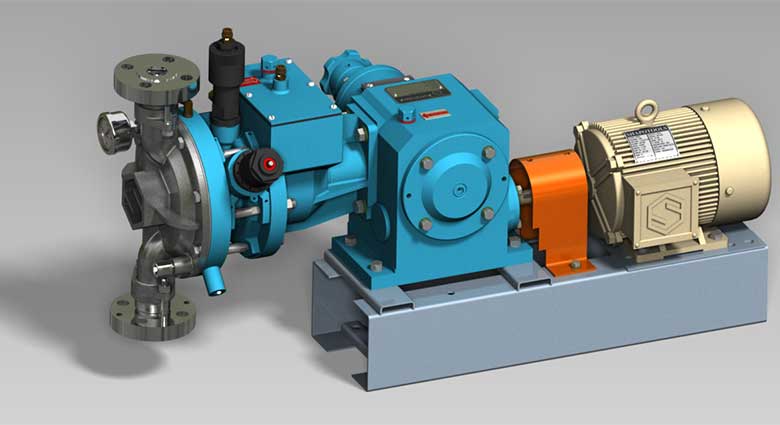

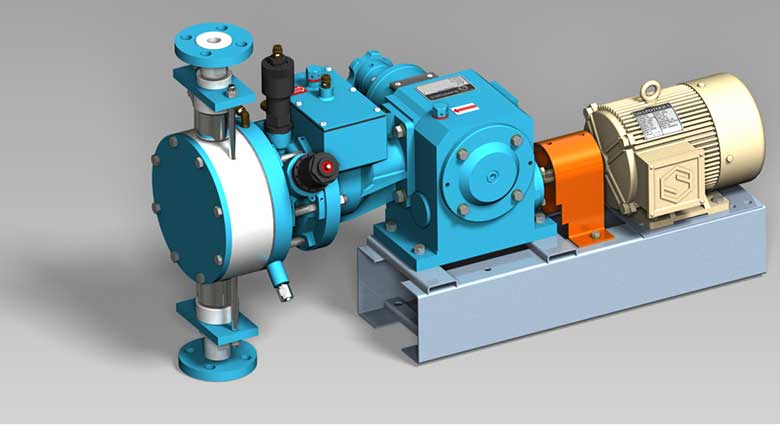

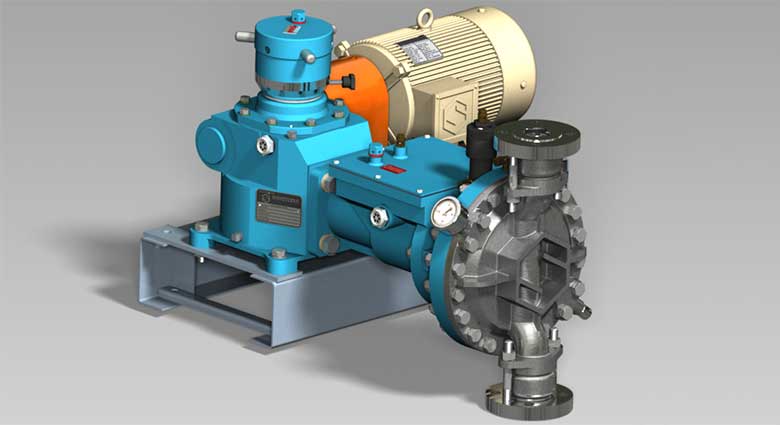

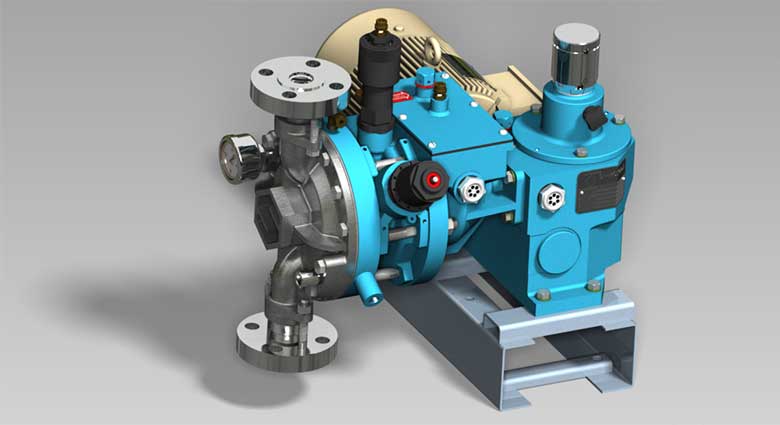

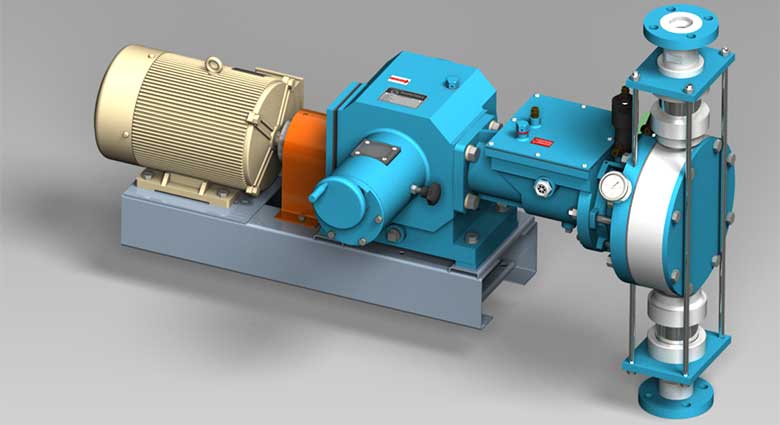

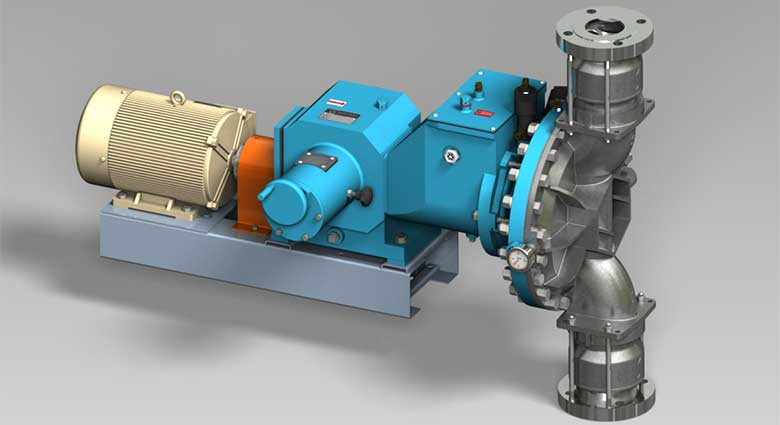

  Glandless Hydraulic Diaphragm Pumps

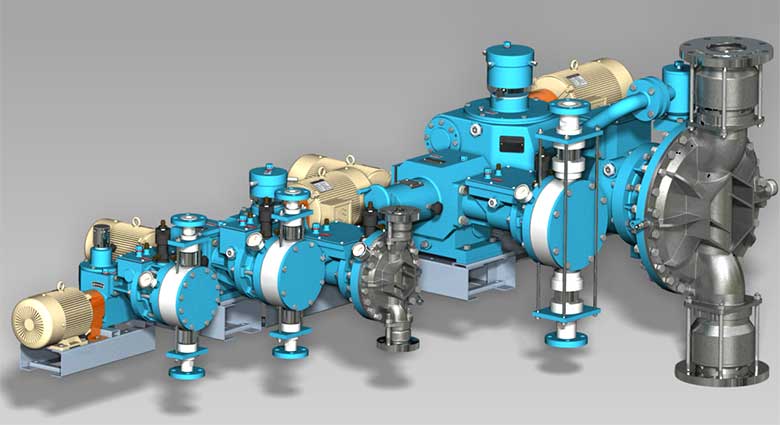

The use of glandless pumps is currently increasing despite the fact that their initial cost and sometimes their maintenance costs can be higher than those of a conventional pump. Shapotools are a leading Diaphragm pumps manufacturers in India. Our glandless hydraulic diaphragm pumps are available in a number of different types and a wide range of sizes, using single or double diaphragms for handling an extensive range of products, from thin volatile liquids to viscous and abrasive slurries, corrosive or radioactive materials and, in some cases, fluidized powders. Shapotools are widely preferred diaphragm pumps suppliers in India due to their quality and ruggedness and high performance. The features of our glandless diaphragm pumps are:



arrow No Leakages/ Robust Design
arrow Hydraulically Balanced Sandwich (Double) Diaphragm with Rupture Detection
arrow Built in Safety Relief Valve
arrow High Pumping Pressures & API 675 Accuracies
arrow Low NPSHR
arrow Continuous Hydraulic oil venting
arrow Wide range of plastic & Metallic MOCs
arrow Positive return stroke mechanism
arrow Permits pumping of slurries and viscous liquids

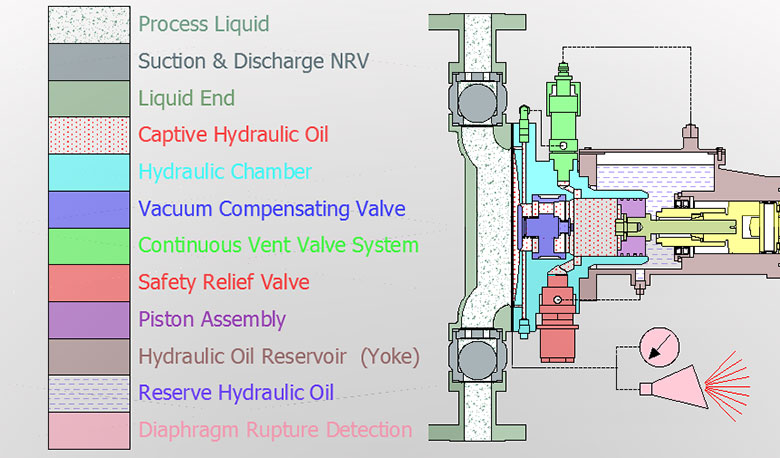

The diaphragm is hydraulically actuated. Its function is basically that of a partition. Hence, very high pumping pressures can be attained.
The diaphragm material is usually Teflon but also supplied in Stainless steel in some cases for extreme duty conditions & temperatures.
There is no leakage of the process fluid as it is hermetically sealed.
The diaphragm has a long life as it is always in hydraulic balance, with the liquid being pumped on one side, and process fluid on the opposite side.
The system is safe guarded by a built in relief valve on the hydraulic side, a diaphragm actuated compensating valve & Continuous Hydraulic oil venting system.
A rupture detection system is provided to detect diaphragm failure, in order to prevent the contamination of the metered fluid. The two diaphragms are marginally separated by a spacer, and are linked together by a light vacuum. In case of diaphragm failure the vacuum turns to pressure which is indicated by a compound gauge or switch. There is no intermediate fluid which virtually eliminates the possibilities of contamination of the pumped liquid.
The pumps are of glandless design eliminating all kinds of leakages.


Special variations can be provided for extreme pumping conditions or liquids    >>Click Here

Accessories

PUMP MODEL SELECTION CHART
Stroke Length (mm) Strokes per minute Plunger Force (Kgf) Plunger Diameters >  (mm) 15 25 38.4 46.3 54 60.3 66.7 77 91.5 100 114.3 127 161.5
20 57 248 Flow (LPH) > 11.0 30.6 72.1 104.8 142.6 177.8 217.5 289.8 - - - - -
Pr (Kg/cm2 g) > 116.0 41.8 17.7 12.2 8.3 6.2 4.6 2.8 - - - - -
70 228 Flow (LPH) > 13.5 37.5 88.5 128.7 175.1 218.3 267.1 356.0 - - - - -
Pr (Kg/cm2 g) > 106.6 38.4 16.3 11.2 7.5 5.5 4.0 2.4 - - - - -
100 252 Flow (LPH) > 19.3 53.6 126.5 183.9 250.1 311.9 381.6 508.5 - - - - -
Pr (Kg/cm2 g) > 117.9 42.4 18.0 12.4 8.5 6.3 4.7 2.9 - - - - -
114 228 Flow (LPH) > 22.0 61.1 144.2 209.6 285.1 355.5 435.0 579.7 - - - - -
Pr (Kg/cm2 g) > 106.6 38.4 16.3 11.2 7.5 5.5 4.0 2.4 - - - - -
141 216 Flow (LPH) > 27.2 75.6 178.3 259.2 352.6 439.7 538.0 717.0 - - - - -
Pr (Kg/cm2 g) > 101.0 36.4 15.4 10.6 6.9 5.1 3.7 2.1 - - - - -
196 168 Flow (LPH) > 37.8 105.1 247.9 360.4 490.2 611.2 747.9 996.7 - - - - -
Pr (Kg/cm2 g) > 78.6 28.3 12.0 7.5 4.8 3.4 2.3 1.1 - - - - -
30 60 444 Flow (LPH) > - - - 165.5 225.1 280.7 343.4 457.7 646.2 771.9 - - -
Pr (Kg/cm2 g) > - - - 21.8 16.0 12.8 10.5 7.0 4.3 3.2 - - -
75 413 Flow (LPH) > - - - 206.8 281.4 350.8 429.3 572.1 807.8 964.9 - - -
Pr (Kg/cm2 g) > - - - 20.3 14.9 11.9 9.3 6.4 3.8 2.8 - - -
100 348 Flow (LPH) > - - - 275.8 375.1 467.8 572.3 762.8 1077.1 1286.5 - - -
Pr (Kg/cm2 g) > - - - 17.1 12.6 10.1 7.5 5.0 2.8 1.9 - - -
120 331 Flow (LPH) > - - - 330.9 450.2 561.3 686.8 915.3 1292.5 1543.8 - - -
Pr (Kg/cm2 g) > - - - 16.3 12.0 9.1 7.0 4.6 2.5 1.7 - - -
141 319 Flow (LPH) > - - - 388.9 528.9 659.6 807.0 1075.5 1518.7 1813.9 - - -
Pr (Kg/cm2 g) > - - - 15.7 11.5 8.7 6.6 4.4 2.4 1.6 - - -
196 283 Flow (LPH) > - - - 540.5 735.3 916.8 1121.8 1495.0 2111.1 2521.5 - - -
Pr (Kg/cm2 g) > - - - 13.9 10.2 7.4 5.6 3.6 1.8 1.1 - - -
45 57 544 Flow (LPH) > - - - - 320.7 399.9 489.4 652.2 920.9 1099.9 - - -
Pr (Kg/cm2 g) > - - - - 19.6 15.7 12.9 9.2 5.8 4.4 - - -
70 544 Flow (LPH) > - - - - 393.9 491.2 601.0 800.9 1130.9 1350.8 - - -
Pr (Kg/cm2 g) > - - - - 19.6 15.7 12.9 9.2 5.8 4.4 - - -
93 489 Flow (LPH) > - - - - 523.3 652.5 798.4 1064.0 1502.5 1794.6 - - -
Pr (Kg/cm2 g) > - - - - 17.6 14.1 11.6 8.0 4.9 3.7 - - -
117 480 Flow (LPH) > - - - - 658.4 820.9 1004.5 1338.6 1890.3 2257.8 - - -
Pr (Kg/cm2 g) > - - - - 17.3 13.9 11.4 7.8 4.8 3.6 - - -
149 471 Flow (LPH) > - - - - 838.4 1045.5 1279.2 1704.8 2407.3 2875.3 - - -
Pr (Kg/cm2 g) > - - - - 17.0 13.6 11.1 7.6 4.7 3.5 - - -
60 60 624 Flow (LPH) > - - - - 450.2 561.3 686.8 915.3 1292.5 1543.8 2016.9 2490.0 -
Pr (Kg/cm2 g) > - - - - 22.5 18.1 14.8 11.1 7.0 5.4 3.6 2.4 -
75 593 Flow (LPH) > - - - - 562.7 701.7 858.5 1144.1 1615.6 1929.7 2521.1 3112.5 -
Pr (Kg/cm2 g) > - - - - 21.4 17.2 14.0 10.5 6.5 5.1 3.3 2.2 -
100 533 Flow (LPH) > - - - - 750.3 935.6 1144.7 1525.5 2154.2 2573.0 3361.4 4149.9 -
Pr (Kg/cm2 g) > - - - - 19.2 15.4 12.6 9.0 5.6 4.3 2.7 1.7 -
123 513 Flow (LPH) > - - - - 922.8 1150.7 1408.0 1876.4 2649.6 3164.7 4134.6 5104.4 -
Pr (Kg/cm2 g) > - - - - 18.5 14.9 12.1 8.5 5.3 4.0 2.5 1.6 -
150 493 Flow (LPH) > - - - - 1125.4 1403.3 1717.0 2288.3 3231.2 3859.4 5042.2 6224.9 -
Pr (Kg/cm2 g) > - - - - 17.8 14.3 11.7 8.1 5.0 3.8 2.3 1.4 -
60HP 60 1440 Flow (LPH) > - - - - - - 686.8 915.3 1292.5 1543.8 2016.9 2490.0 4026.5
Pr (Kg/cm2 g) > - - - - - - 34.1 25.6 18.1 15.2 11.6 8.9 4.5
74 1360 Flow (LPH) > - - - - - - 847.1 1128.9 1594.1 1904.0 2487.5 3071.0 4966.0
Pr (Kg/cm2 g) > - - - - - - 32.2 24.1 17.1 14.3 11.0 8.2 4.1
93 1267 Flow (LPH) > - - - - - - 1064.6 1418.7 2003.4 2392.9 3126.1 3859.4 6241.1
Pr (Kg/cm2 g) > - - - - - - 30.0 22.5 15.9 13.3 10.2 7.5 3.7
112 1260 Flow (LPH) > - - - - - - 1282.0 1708.6 2412.6 2881.7 3764.8 4647.9 7516.2
Pr (Kg/cm2 g) > - - - - - - 29.8 22.4 15.8 13.3 10.1 7.4 3.7
150 1253 Flow (LPH) > - - - - - - 1717.0 2288.3 3231.2 3859.4 5042.2 6224.9 10066.3
Pr (Kg/cm2 g) > - - - - - - 29.6 22.2 15.8 13.2 10.1 7.4 3.6
90 60 1529 Flow (LPH) > - - - - - - 1030.2 1373.0 1938.7 2315.7 3025.3 3734.9 6039.8
Pr (Kg/cm2 g) > - - - - - - 36.2 27.1 19.2 16.1 12.3 9.6 5.0
75 1458 Flow (LPH) > - - - - - - 1287.8 1716.2 2423.4 2894.6 3781.6 4668.7 7549.7
Pr (Kg/cm2 g) > - - - - - - 34.5 25.9 18.3 15.3 11.7 9.0 4.6
100 1413 Flow (LPH) > - - - - - - 1717.0 2288.3 3231.2 3859.4 5042.2 6224.9 10066.3
Pr (Kg/cm2 g) > - - - - - - 33.4 25.1 17.8 14.9 11.4 8.7 4.4
70 60 1529 Flow (LPH) > - - - - - - 1602.6 2135.7 3015.8 3602.2 4706.0 5809.9 9395.2
Pr (Kg/cm2 g) > - - - - - - 36.2 27.1 19.2 16.1 12.3 9.6 5.0
75 1458 Flow (LPH) > - - - - - - 2003.2 2669.6 3769.8 4502.7 5882.5 7262.4 11744.0
Pr (Kg/cm2 g) > - - - - - - 34.5 25.9 18.3 15.3 11.7 9.0 4.6
100 1413 Flow (LPH) > - - - - - - 2670.9 3559.5 5026.4 6003.6 7843.4 9683.2 15658.7
Pr (Kg/cm2 g) > - - - - - - 33.4 25.1 17.8 14.9 11.4 8.7 4.4
115 1315 Flow (LPH) > - - - - - - 3071.6 4093.5 5780.3 6904.1 9019.9 11135.7 18007.5
Pr (Kg/cm2 g) > - - - - - - 31.1 23.3 16.5 13.8 10.6 7.9 3.9
150 1218 Flow (LPH) > - - - - - - 4006.4 5339.3 7539.5 9005.4 11765.1 14524.8 23488.0
Pr (Kg/cm2 g) > - - - - - - 28.8 21.6 15.3 12.8 9.4 7.1 3.4

Note: The above chart is only given as a guide. Pumps are manufactured to meet your required capacities & pressures. Other SPMs can also be offered.
We reserve the right to change the data provided above without any notice.
